Processor core available8 core
Processor cache11 MB L3
Memory typeHPE DDR4 SmartMemory
NVDIMM typeNone
NVDIMM rankN/A
NVDIMM capacityN/A
Infrastructure managementHPE iLO Standard with Intelligent Provisioning (embedded), HPE OneView Standard (requires download), Optional- HPE iLO Advanced, and HPE OneView Advanced (require licenses)
System fan features3 standard single rotor hot swap fans
Power supply type1 HPE 500W Flex Slot Platinum hot plug power supply
Expansion Slots3 PCIe 3.0, for detailed descriptions please reference the QuickSpecs
Network ControllerHPE embedded 2-port 1 GbE Ethernet adapter
Storage controllerHPE Smart Array S100i
Warranty3/3/3 Server Warranty includes 3-Year Parts, 3-Year Labor, 3-Year Onsite support with next business day response. Additional HPE support and service coverage for your product can be purchased locally. For information on availability of service upgrades and the cost for these service upgrades, refer to the HPE website at http://www.hpe.com/support
Processor NameIntel® Xeon® Scalable 4208 (8 core, 2.1 GHz, 85 W)
Processor number1 processor
Processor speed2.1 GHz
Memory, standard16 GB (1 X 16 GB) RDIMM
Included hard drivesNone ship standard, 8 SFF drives supported.
Optical drive typeNone
SecurityOptional locking Bezel Kit, Intrusion Detection Kit, or HPE TPM 2.0
Form Factor1U
Weight24.19 lb minimum, 30.69 lb maximum
Weight10.97 kg minimum, 13.92 kg maximum
Minimum dimensions ( H x W x D)1.69 x 17.11 x 24.21 in
Minimum dimensions ( H x W x D)4.29 x 43.46 x 61.49 cm

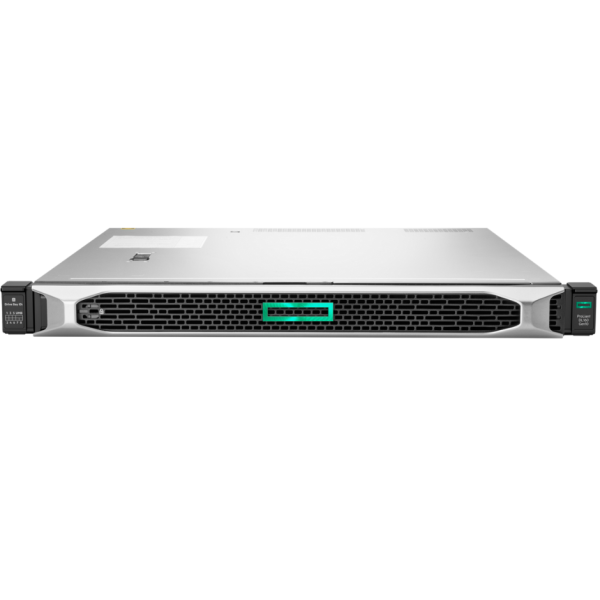

Detailed product descriptionHPE ProLiant DL160 Gen10 rack server with one Intel® Xeon® 4208 processor, 16 GB memory, eight small form factor drive bays and a 500W power supply
Intel and Intel Xeon are trademarks of Intel Corporation in the U.S. and other countries. All other third-party marks are property of their respective owners.
